What’s in the meter box?
Today’s “intelligent” metering system is more than a passive recorder – it’s an active node in the smart grid. While smart meter setups vary across Europe, many follow a similar structure involving three to four coordinated devices. This piece focuses on Germany’s configuration under §14a, but it’s equally relevant for markets like the Netherlands, which may soon introduce comparable regulatory requirements. At the center of the setup is the intelligent measuring system (iMSys), which combines a digital meter with a communication gateway. This is typically paired with a control box for managing loads and, where needed, an additional energy meter for separately measuring circuits like electric vehicle (EV) chargers or heat pumps.
Below, we explain each component in detail.
Modern measuring device
The modern measuring device is essentially a digital electricity meter. It replaces the old analog wheel meters with an electronic display and memory. This meter continuously measures how much energy is being consumed (or produced, if you have solar panels) and at what times. Unlike traditional meters that only show a total usage reading, a modern measuring device can log detailed usage over time, providing granular data. By itself, this device is often called an mME (moderne Messeinrichtung) in Germany – a standalone digital meter that records actual consumption and usage time. When connected to a communication gateway, it becomes part of a “smart meter” system.
Integration
In the meter box, the modern measuring device connects to the smart meter gateway via an optical or wired link, forming the Local Metrological Network (LMN). This connection transfers meter readings to the smart meter gateway (SMGW, defined below) for processing and transmission. Many setups include multiple measuring devices – for example, one for total household use and another for a heat pump. The SMGW can aggregate data from several meters, allowing one gateway to manage both main and sub-meters.
Role in §14a compliance
Under §14a EnWG (the German Energy Industry Act), high-power appliances (such as EV chargers and heat pumps) must be dimmable by the grid operator to prevent grid overloads. The modern measuring device ensures accurate consumption tracking, essential for both billing and verifying grid interventions. For instance, if an electric car charger is throttled, this is not confirmed through the modern measuring device. Instead, in a typical gridBox setup, the appliance itself measures and validates the throttling, while the iMS primarily handles the limits. Additionally, §14a provides incentives like reduced grid fees. If the controllable appliances are connected to a separate meter, you can request module 2 for a grid fee reduction based on percentages. This encourages the installation of a separate modern meter (an energy sub-meter) for such appliances. Without this modern measuring device, there’s no accurate data foundation, making it impossible to implement flexible tariffs or verify compliance with control signals as required by §14a.
Smart meter gateway (SMGW)
The smart meter gateway (SMGW) is the brain and hub of the smart metering system. Mounted in the meter box, usually next to or on top of the digital meter, it turns a modern measuring device into a truly smart meter by connecting it to external networks. Together, the digital meter and SMGW make up the intelligent metering system (iMSys). The SMGW handles all data exchange between the meter box and authorized external parties. It collects consumption data, encrypts it and sends it via WAN (cellular, Ethernet or other IP-based channels), while also receiving control commands like load reduction or dynamic feed-in limits. Certified by Bundesamt für Sicherheit in der Informationstechnik (BSI), it ensures secure, tamper-proof communication.
Integration

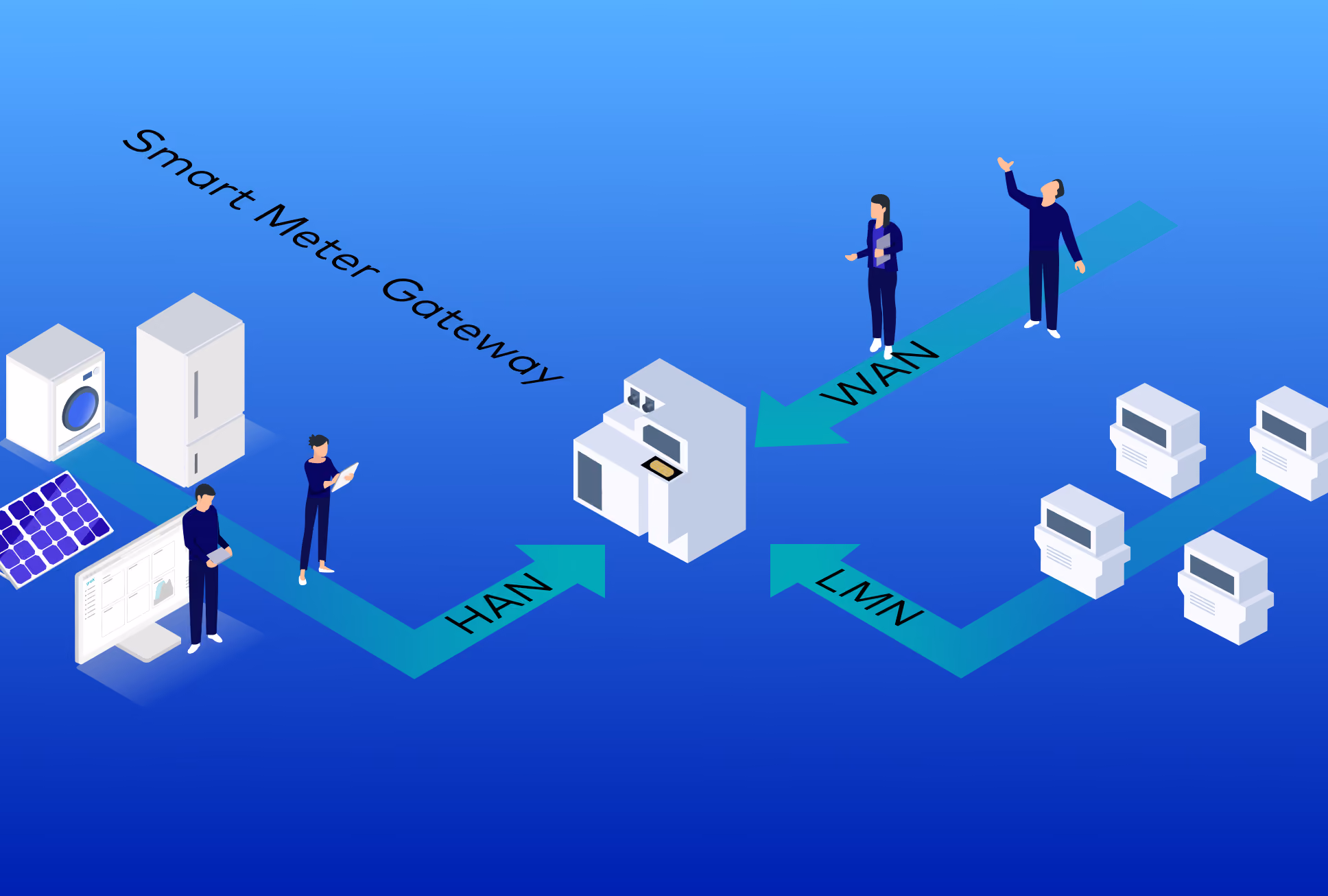

The smart meter gateway has multiple communication interfaces by design, which allow it to sit in the middle of various connections. The key interfaces are:
- LMN (Local Metrological Network): Connects the SMGW to modern measuring devices – electricity, and potentially gas, water, or heat meters – to collect all local readings.
- WAN (Wide Area Network): Links the SMGW to utilities or service providers via secure IP-based channel, enabling data transmission and remote control signals.
- HAN (Home Area Network): The HAN interface of the SMGW serves two roles. HAN-CON allows end users to access their own energy data via a customer interface. HAN-CLS connects to control systems like a control box, which then communicates with devices such as HEMS or EV chargers.
Together, these interfaces make the SMGW a secure hub that connects meters and control units like the control box to the grid, ensuring only authorized data and commands flow in or out. Appliances and energy management systems connect indirectly via these control units.
Role in §14a compliance
The smart meter gateway is essential for §14a. Controllable demand relies on secure, reliable communication – and that’s the SMGW’s role. When a grid operator needs to reduce loads, the command is securely routed via the SMGW to the control box using its controllable local systems interface. The SMGW also sends back usage data to verify how much was curtailed and for how long. Without it, there’d be no standardized way to exchange control signals or consumption data in real time. Recognizing this, the German government mandated smart meter rollout by 2025, aiming for full coverage by 2032.
Control box
The control box (German: Steuerbox) – often referred to as the “FNN control box” after the industry standard set by the VDE FNN (Forum Network Technology/Network Operation) – is the latest addition to the meter cabinet. It’s the device responsible for executing control commands on connected electrical loads. If the smart meter gateway (SMGW) is the brain, the control box is the hands – flipping switches or sending signals to regulate electricity flow to devices like EV chargers, heat pumps, battery storage systems or even solar inverters. The VDE FNN developed the control box standard to ensure interoperability across Germany.
What the control box does:
It connects to the SMGW via the CLS interface and listens for control commands. These are executed through either relay contacts for legacy systems (e.g. switching loads on/off) or digital protocols like EEBUS, which allow for more granular control (e.g. throttling charging power). This dual-mode approach ensures compatibility with both old and new devices.
Integration
Installed in the APZ field (abgesetzter Platz für Zusatzanwendungen – separate space for additional applications) of the meter cabinet, the control box serves as the link between the smart meter gateway (SMGW) and controllable assets. In basic setups, it controls appliances directly via relays or standard protocols. More advanced, scalable setups route control commands through an energy management system (EMS), which aggregates and coordinates devices intelligently – enabling a more flexible, user-focused setup while still meeting regulatory requirements.
Role in §14a compliance
The control box is key to §14a compliance, enabling grid operators to throttle large loads via the SMGW during grid stress – for example, by pausing an EV charger – while ensuring a minimum supply (e.g. 4.2 kW), ensuring that the household supply keeps running.
While direct control is possible, routing §14a signals through an EMS allows for smarter, priority-based load management across multiple devices. This ensures compliance without sacrificing user comfort or visibility. Together, the control box and EMS enable practical, scalable demand-side flexibility.
It also unlocks flexible tariffs: in exchange for controllability, users benefit from lower grid fees or special rates. While direct relay control is possible, routing §14a signals through an EMS provides greater transparency, optimization and user control. Without the control box, §14a would remain theoretical, with no way to actually reduce loads on demand.
Energy meter
An energy meter refers to any device that measures electricity consumption or generation. In a modern meter box, this includes the main household meter and any additional ones for sub-circuits or PV systems. While all modern measuring devices are energy meters, not all energy meters are modern – some are older and lack communication or logging capabilities. For §14a and smart systems, we’re specifically talking about digital meters that can transmit and record time-based data.
What it does
An energy meter keeps a precise tally of electricity flow. Most residential meters in Germany are now bidirectional, meaning they can measure both consumption (energy drawn from the grid) and production (energy fed into the grid, from solar panels for example). The meter usually displays cumulative kilowatt-hours, and a modern one can store interval data (e.g., monthly totals, load profiles). In a §14a scenario, you might have multiple energy meters in the cabinet:
- One meter measures the total energy consumption of the household (let’s call it the main meter).
- A second meter might measure only the controllable appliance’s consumption – for instance, all electricity going to an EV charging station or heat pump. This is a separate metering point dedicated to that device.
- If the home has solar panels feeding energy back to the grid, there may be an additional energy meter (feed-in meter) measuring the output of the PV system.
All these meters are energy meters; when at least one of them is a modern digital type and is paired with a gateway, it becomes part of the intelligent system. In practice, any meter involved in the smart system will be a modern measuring device for consistency.
Integration
Energy meters are installed in the meter box and wired to measure specific electricity flows, either for the whole house or sub-circuits. In a smart setup, they connect to the smart meter gateway via the LMN. The gateway polls each meter – often through an optical port using OBIS/DLMS standards – and consolidates the data. Whether there’s one meter or several, all key readings flow through the SMGW and can be accessed by energy apps or utilities.
Role in §14a compliance
Accurate energy metering is the bedrock of any demand management program. For §14a, the presence of a separate energy meter for the controllable device is often what enables the special tariff conditions. In fact, one of the tariff modules allows about a 60% reduction in volumetric grid charges if a separate metering point is used for the controllable appliance. This incentivizes the installation of an extra energy meter dedicated to, say, the EV charger circuit. That meter records how much energy the EV consumes (which will be billed at a lower network fee) and ensures that only that portion of usage is subject to control. Meanwhile, the main meter continues to measure the rest of the household usage normally. By segregating measurements, both the homeowner and the utility can clearly distinguish controlled vs uncontrolled consumption.
Energy meters also provide the data needed to verify §14a compliance. Grid operators must log when and how long control actions occur, which means checking meter data during those intervals. For example, if EV charging is throttled for 30 minutes, lower consumption during that time confirms the control box worked. This data flows through the SMGW to the operator for record-keeping. Meters must also be calibrated and certified (MID-compliant) to ensure billing and control data is legally valid.
HEMS gateway
Unlike the four core components housed in the meter box, the HEMS gateway – such as gridX’s gridBox – operates as the central intelligence layer for the entire energy system. It doesn’t replace the SMGW or control box but complements them by enabling true interoperability, monitoring and real-time control across all connected assets: PV, EV chargers, heat pumps, batteries and more. While the SMGW handles certified data exchange and the control box executes grid signals, the HEMS gateway brings it all together for advanced use cases – from §14a compliance to self-sufficiency optimization, dynamic tariffs and participation in flexibility markets. Because it’s installed locally (just connected to a router or switch and powered up), the gridBox enables offline functionality, secure edge control and sub-second response times – something cloud-only systems can’t guarantee. It automatically scans and integrates assets upon setup, with the end user app ready to go in under 10 minutes. Most importantly, it makes near real-time energy management possible and scalable, independent of manufacturer lock-ins or slow backend dependencies.
Common §14a implementation challenges
Implementing a §14a-compliant smart meter setup is not without its hurdles. Both industry professionals and early adopters have encountered challenges while coordinating these components in the field. Here are some of the key issues and considerations:
Interoperability between manufacturers and standards
The system involves multiple players – meter makers, gateway vendors, appliance manufacturers, and software providers – all needing to communicate seamlessly. Standards like EEBUS and Modbus exist, but not all devices support them uniformly. Some older appliances rely on basic relay signals, while newer ones need protocol-based communication. Control boxes must bridge these differences, which often requires integration testing. While interoperability is improving, it remains a sticking point for consistent §14a execution.
Regulatory compliance (data security, certification, legal mandates)
Germany’s strict data security laws mean every SMGW and control unit must be BSI-certified. Any added device – from control boxes to HEMS – must integrate securely. This increases complexity for manufacturers and restricts who can send or receive control commands. Utilities also have legal obligations to log and publish control actions. Compliance is essential but demanding, with no shortcuts around BSI protocols or EnWG requirements.
Cost and installation complexity
Adding §14a capability isn’t cheap or simple. Homeowners typically pay €40-50 annually for smart metering, plus potential costs for meter cabinet upgrades, new meters, control boxes and wiring. Installations require certified electricians and can be time-intensive. User confusion is another barrier – clear guidance is needed to help navigate a system that includes multiple interconnected components. That said, cost caps and future scale promise to reduce these burdens over time.
Expert insights in the future of smart metering
The humble meter box is evolving into a strategic control point for the energy grid. With Germany’s §14a regulation, household connections are no longer passive endpoints – they’re active grid nodes. Instead of blocking new EV chargers or heat pumps, grid operators must now manage them intelligently through a standardized flexibility toolkit.
That’s where seamless integration with home energy management systems (HEMS) comes in. The smart meter gateway ensures secure communication, the control box executes commands – and gridX’s edge device, the gridBox, connects everything on site. But the real intelligence lies in the software: XENON orchestrates devices, prioritizes loads and responds to grid signals in real time.
As Carsten Schäfer, Senior Product Manager Innovation at gridX, puts it: “XENON is what unlocks real flexibility – the gridBox gives us secured access, but the software turns control into value.”
This setup enables more than just peak shaving or outage protection. It allows households to feed in solar, shift consumption, store energy and benefit from dynamic tariffs – automatically. Germany’s §14a rollout proves that when regulation, hardware and software work in sync, the meter box becomes the most valuable square meter in the grid.
